Lumicool 396R
Lumicool 396R

Lumicool 396R

  • Product Code: Lumicool 396R
  • Availability: In Stock

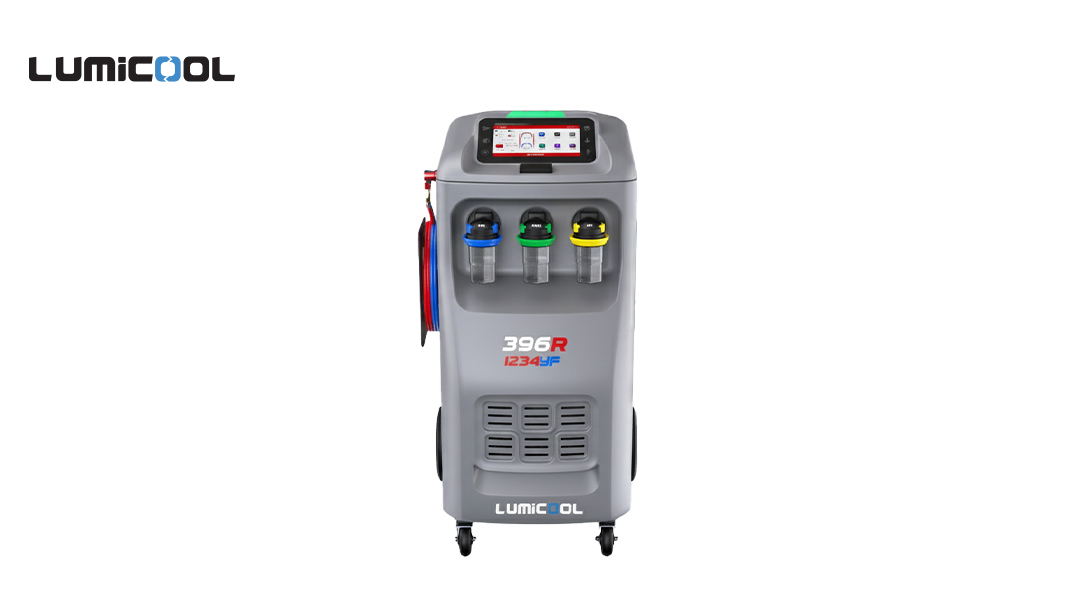

LUMICOOL 396R

Fully-automatic AC Service Unit | Specially designed for 1234yf

1234yf 1234yf
Petrol Car Petrol Car
Hybrid/Electric Hybrid / Electric
Oil Bottle

Patented Design Oil Bottle

Avoid contamination of the new oil contact with the air.

Printer

Configure The Printer

Maintenance data and workshop information can be printed out as required.

High-sensitivity Sensors

High-sensitivity Sensors

Realize accurate leak detection.

Dual Fans

Equipped With 2 Fans

Considering the flammability of 1234yf refrigerant, the equipment ventilation must be ensured. The equipment will remind the user when the fan stops and will not run the operation.

Products Detail

Automatic A/C service station for 1234yf. Premium equipment for A/C service.
The fully automatic 1234yf service unit meets the highest standards for A/C systems. Equipped with a 10-inch touchscreen, five digital scales, four hermetically sealed oil bottles, and four pressure transducers, the 396R combines all maintenance functions in a single device.
The 1234yf refrigerant is classified as "highly flammable," and operators must acknowledge this risk. Thanks to its leak test function, dual ventilation system, and over 95% recovery efficiency, the 396R effectively eliminates any potential refrigerant build-up in the unit or leakage without warning.

Features
  • Fully automatic: it can do recovery, vacuum, charge.
  • 5 digital scales, respectively for PAG oil, POE oil, UV dye, drained oil and cylinder gas.
  • 4 completely sealed oil bottles (1pc PAG, 1pc POE, 1pc UV dye, 1pc oil drain), no worry about contamination.
  • Database and printer. The database can be updated using an SD card. The printer can print out a report with the car plate, workshop's name, and address.
  • 10-inch touch screen, clear and user-friendly.
  • Self-protection system: when the fan stops, the machine stops.
  • Leaking hunting function.
  • Strong operation menu.
Technical Specifications
Refrigerant: 1234yf
Working Voltage: AC220V
Power: 1000W
Working Temperature: -20°C ~ +60°C
Display: 10-inch touch screen
Oil Bottles: 4*350ml, (Hermetically sealed, PAG, POE, UV, Waste Oil)
Electronic Scales: 5 (PAG, POE, UV, Used Oil, ISV)
Scale Accuracy: 10g
Recovery Efficiency: > 95%
Recovery Ability: 1/4HP
Vacuum Pump: 170L/min (6CFM) bipolar
Tank Capacity: 18kg
Dry Filter Ability: 100kg
Pressure Gauge: digital
Cooling Fan: 2
Machine Dimensions: 1150mm(H)*740mm(D)*550mm(W)
Weight: 110kg
