CE39 EV Diagnose, Equalize & Charge/Discharge Equipment

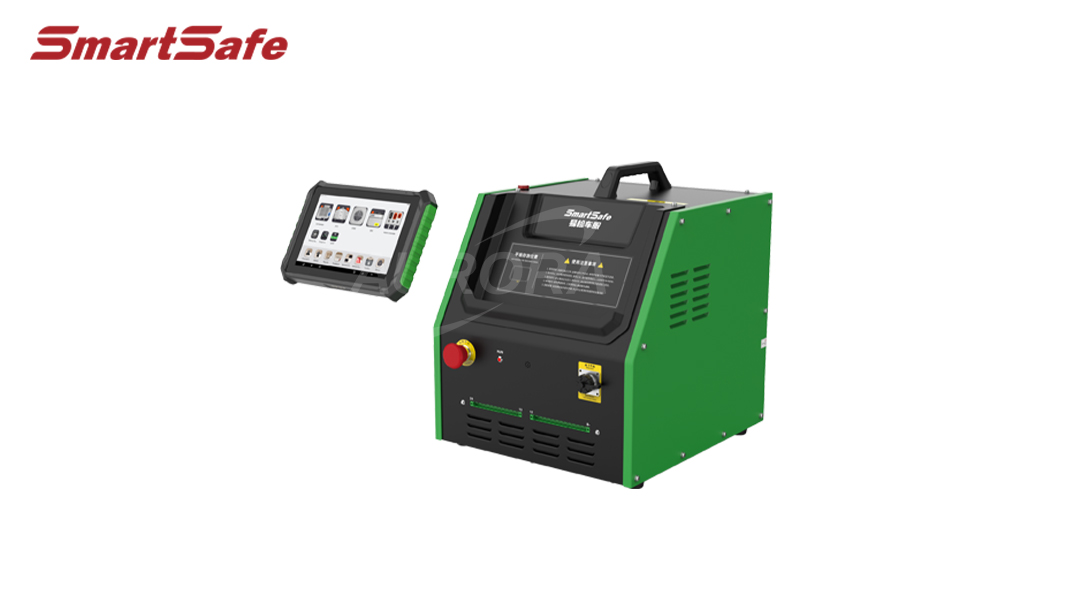

CE39 is the industry's first four-in-one EV diagnostic and maintenance equipment that integrates vehicle diagnostics, battery cell equalization and module charging/discharging.

icon1

Support simultaneous operation
of diagnosis, equalization
and charging/discharging

icon2

Supports whole-vehicle diagnosis,
covering 95%+ EV models
with full-system detection

icon3

Supports offline testing
of batteries, motors
and electronic controls

icon4

Supports offline testing
of compressor, DCDC
and OBC

icon5

Intelligent equalization
with synchronous
24-cell balancing

icon6

Supports 40A high current
significantly improving
work efficiency

icon7

Remote monitoring support
with real-time tracking
of operational status

Function Description ✔
Comprehensive whole-vehicle diagnosis Covering over 95% of electric vehicle models, it supports full-function diagnostics, including code reading, code clearing, data stream reading, actuator tests, and special functions. It enables real-time data stream monitoring and visually presents the communication network and fault points through a vehicle topology diagram, ensuring precise diagnosis and fault localization. ✔
Professional testing and maintenance for battery, motor, electric control, compressor, DCDC, and OBC Supports offline diagnostics for high-voltage core components such as DC converters, onboard chargers, air conditioning compressors, PTC heaters, and motor controllers. It enables offline reading of data streams and fault codes. ✔
Built-in control board fault code repair guidelines Providing troubleshooting ideas, circuit schematics, control board topology diagrams, guided repair. ✔
Battery pack deep inspection Supports reading soc/soH,individual cell/module voltage,temperature, and fault informationAutomatically calculates key indicators such as total voltage and voltage difference, and marks abnormal data. ✔
Precise cell equalization It supports synchronous equalization of 24 battery cells and is compatible with mainstream battery types such as ternary lithium, lithium iron phosphate, and lithium titanate. ✔
High-current efficient charging and discharging Supports 40A charging and 20A discharging currents, quickly adjusts the battery cells to the target voltage, and meets the fast charging and discharging requirements of the battery pack. ✔
Tablet Collaborative Interconnection The lightweight host is equipped with a smart tablet, which supports simultaneous diagnosis and equalization operations, and real-time monitoring of equalization progress, charge and discharge curves, and device status.
Multiple security protections Built-in overvoltage, undervoltage, overcurrent, short circuit, reverse connection and over-temperature protection mechanisms ensure the safe operation of the device and battery.
OTA remote upgrade Support remote firmware upgrade and function module iteration.

Product Parameters

Tablet Parameters

Display 10.1 inches, resolution 800×1280 Charging method Type-C, contact charging
CPU 2.0GHz octa-core Interface USB2.0-TypeA×1, USB2.0-TypeC×1, DC-IN, charging base contact
Memory 4GB Communication Wi-Fi, Bluetooth, USB
Storage 128GB Size 295.9×196×38.6mm
System Android ED BOX operating voltage DC 9~18V
Wi-Fi 2.4GHz/5GHz Dual Band ED BOX communication Bluetooth
Battery 9360mAH/3.8V lithium battery ED BOX size 112×72.5×32.5mm

Host Parameters

Power input AC 90~264V/50~60Hz Equalization interface 12PIN×1, 13PIN×1
Battery module voltage range DC 0~112V Charging control Constant voltage charging, constant current charging
Cell voltage range 1.5~5V Discharge control Constant current discharge, constant voltage discharge
Charging current range 0.5~40A, maximum power 3.2kW Battery protection Overcharge, over-discharge, over-temperature protection
Discharge current range 0.1-20A, maximum power 2.4kW Reverse polarity protection Support
Single cell voltage accuracy ±0.1%FS±5mV (maximum range 5V) Over-temperature protection Cooling box over-temperature 85°C protection
Single cell current accuracy ±0.5%FS±0.05A (maximum range 20A) Host protection Over-temperature, over-current, and current out-of-control trigger shutdown protection
Communication Wi-Fi, Bluetooth Number of equalization channels 2×12
Abnormal protection Power line power failure, main cable power failure
