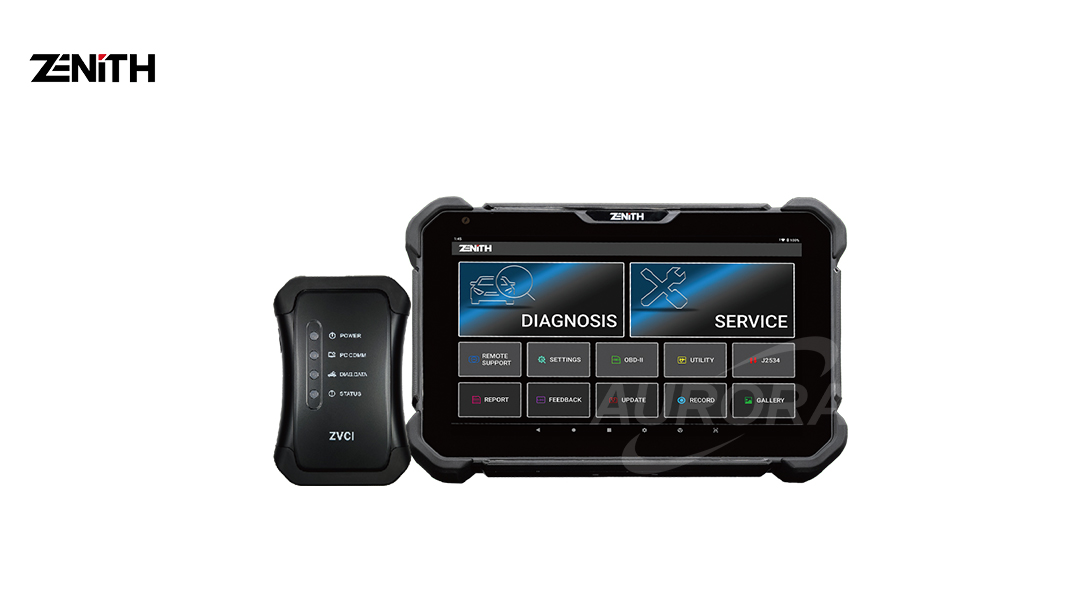

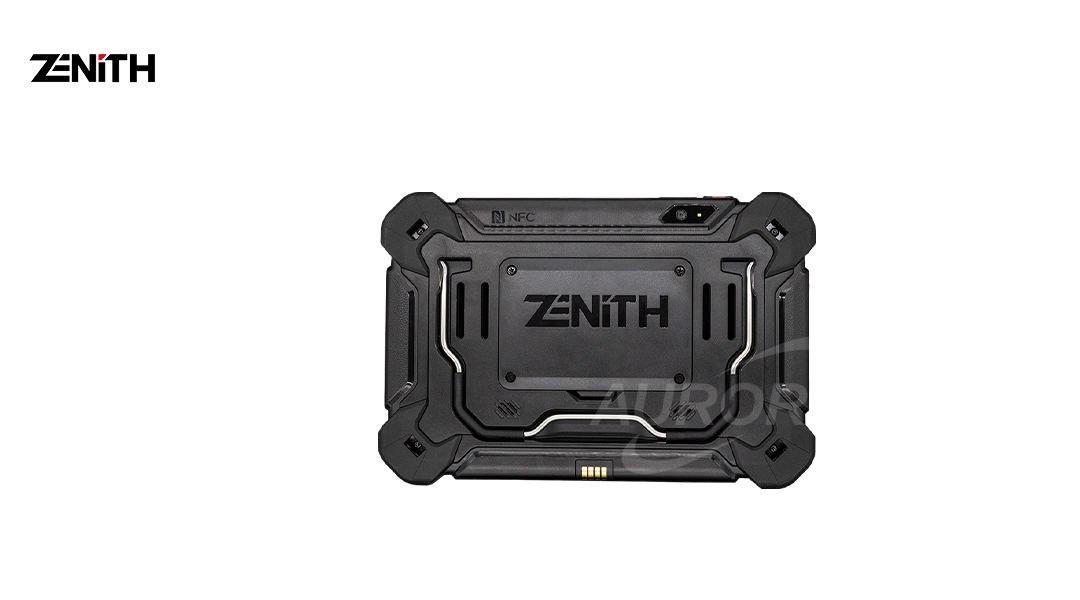

ZENITH Z7 LITE
A True All-In-ONE Scan Tool
An innovative wireless scan tool designed to support a wide range of vehicle brands, offering advanced bi-directional diagnostic capabilities for precise and efficient vehicle maintenance.
Category & Specifications
| CPU | Octa Core Processor 2.2 GHz |
| Operating System | Android 11 |
| System Memory | 4G / Internal 64G ** |
| External Memory | Micro SD Card Slot Supported (up to 256GB) |
| LCD | 10.1 inch FHD (1920 x 1200) |
| Input Devices | Capacitive Touch Screen, 3 Hard Keys (Power, Volume +, Volume -) |
| Camera | 8 megapixel auto-focus with LED flash |
| Sound | Loud Speaker 1 microphone |
| Battery | Li-ion 3.85V, 5800mAh |
| Operating Voltage | Main Unit (DC5V) |
| Sensors | Ambient Light, Gyroscope, Accelerometer |
| Dimension | 275 x 187 x 36mm (Terminal) / 130 x 89 x 32mm (VCI) |
| External Port | USB-B Type (Normal Type) |
| Network | RJ45 Ethernet, Wi-Fi 802.11 a/b/g/n, Bluetooth 5.0, NFC |
Supported Communication Protocols
CAN (High speed, Low speed, Single)
ISO-13400, ISO-11898, ISO-9141, ISO-9141-CARB, KWP-2000
SAE-J1708, SAE-J1587
J1850 (PWM/VPW)
Melco Pull-Down

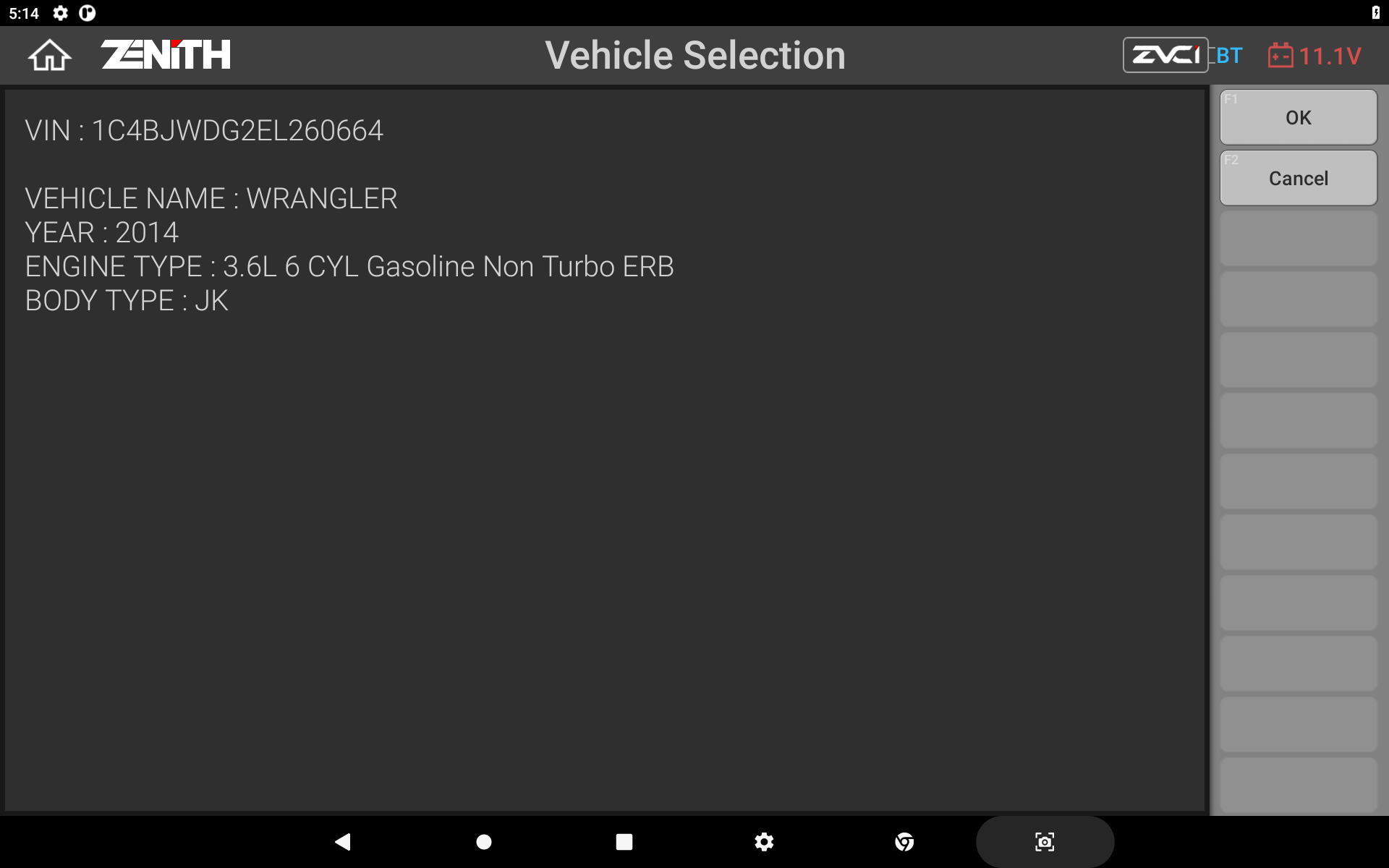

Ultra Fast System Search
Zenith offers ultra fast and auto system scan function that detects the VIN, model year, model name, engine type, and other necessary information that are retrieved.

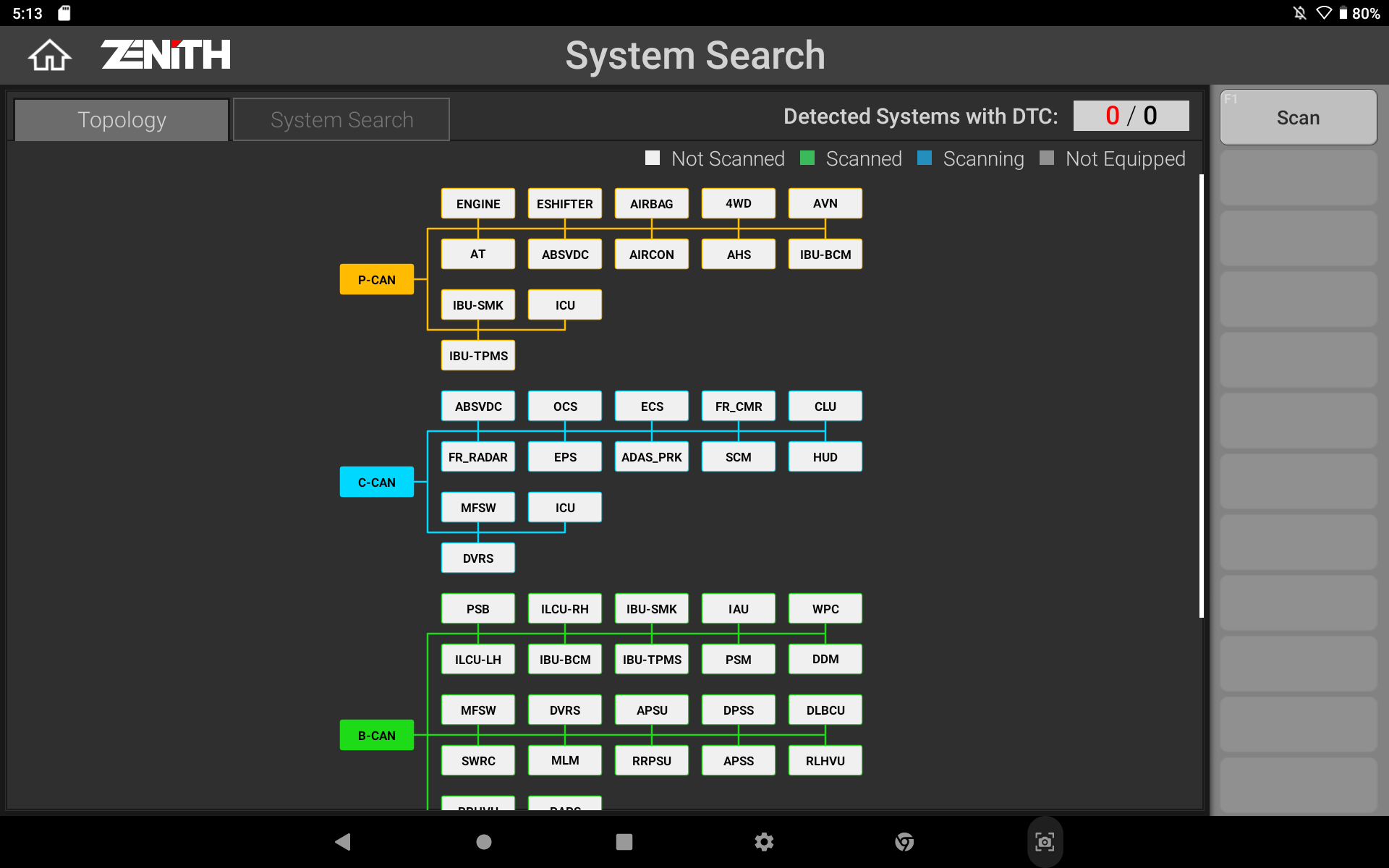

Topology Scan
Zenith also offers ultra fast Topology scan function that scans all the vehicle systems, reports fault codes, and provides access to advanced diagnostic functions in each detected system.

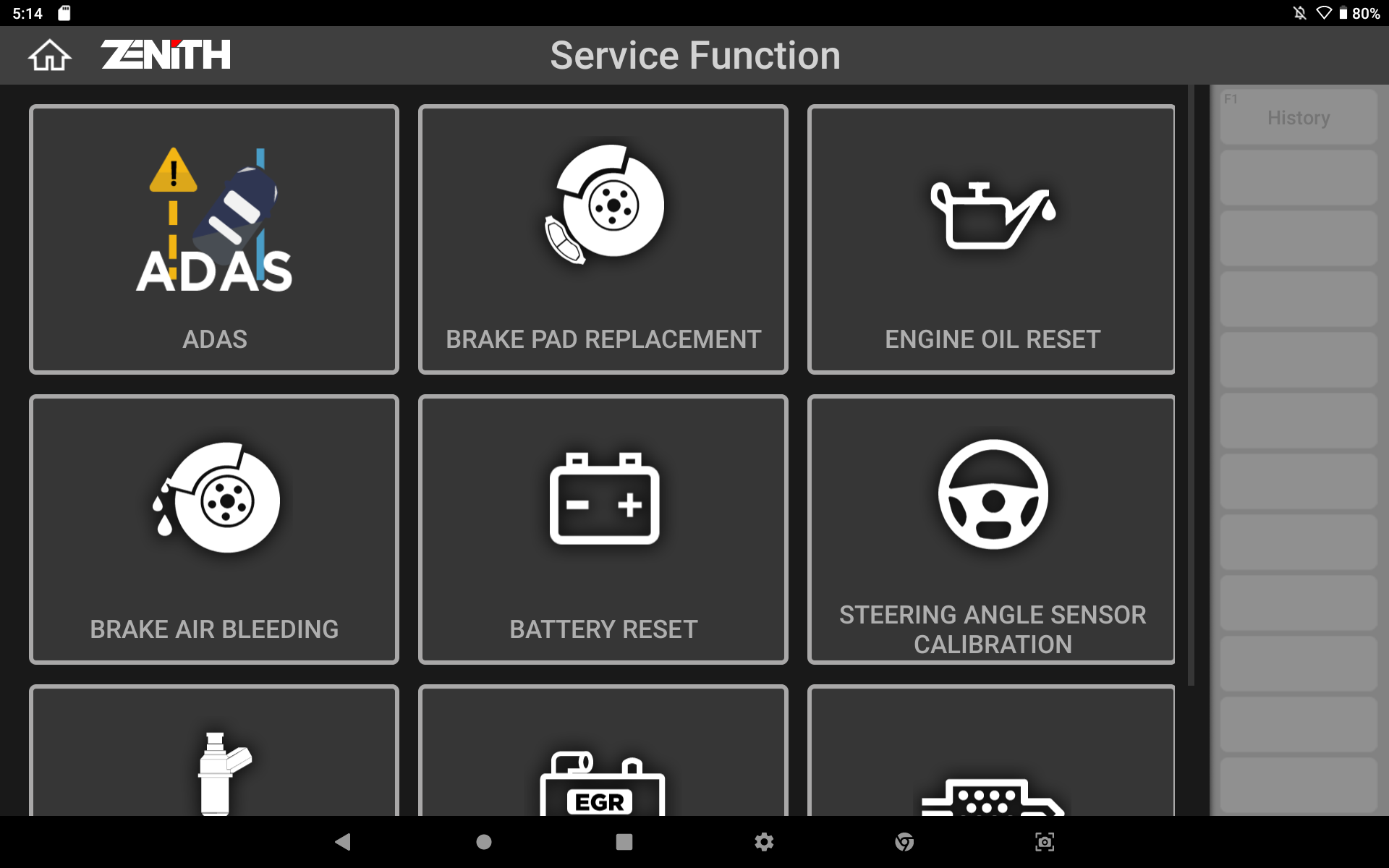

Service Function
Time is money! Zenith offers shortcuts to the most frequently used functions in the workshops to save time for technicians to navigate through the original menu system.

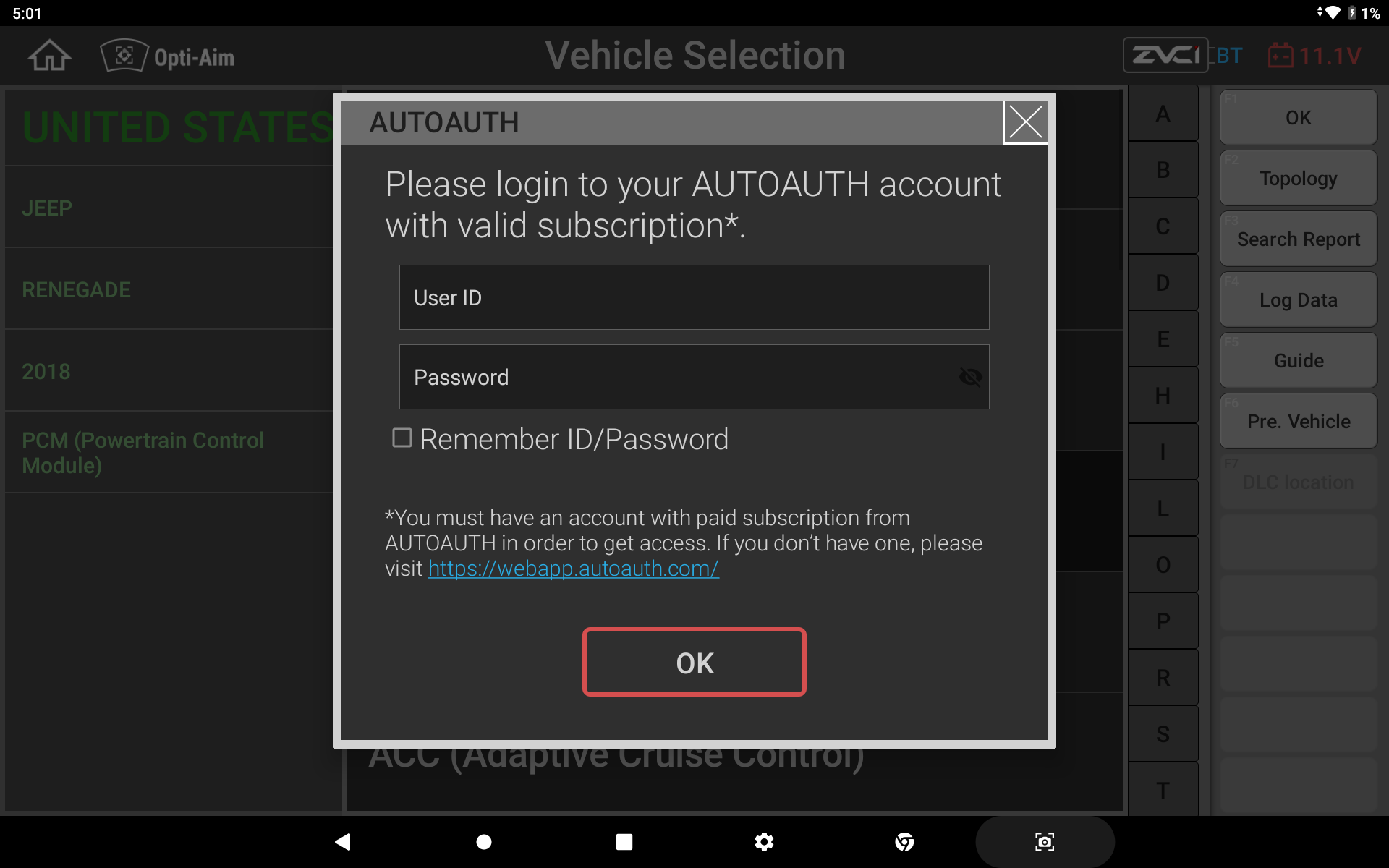

FCA SGW Ready
Zenith offers Security Gateway access on the latest Fiat, Chrysler models via AutoAuth.

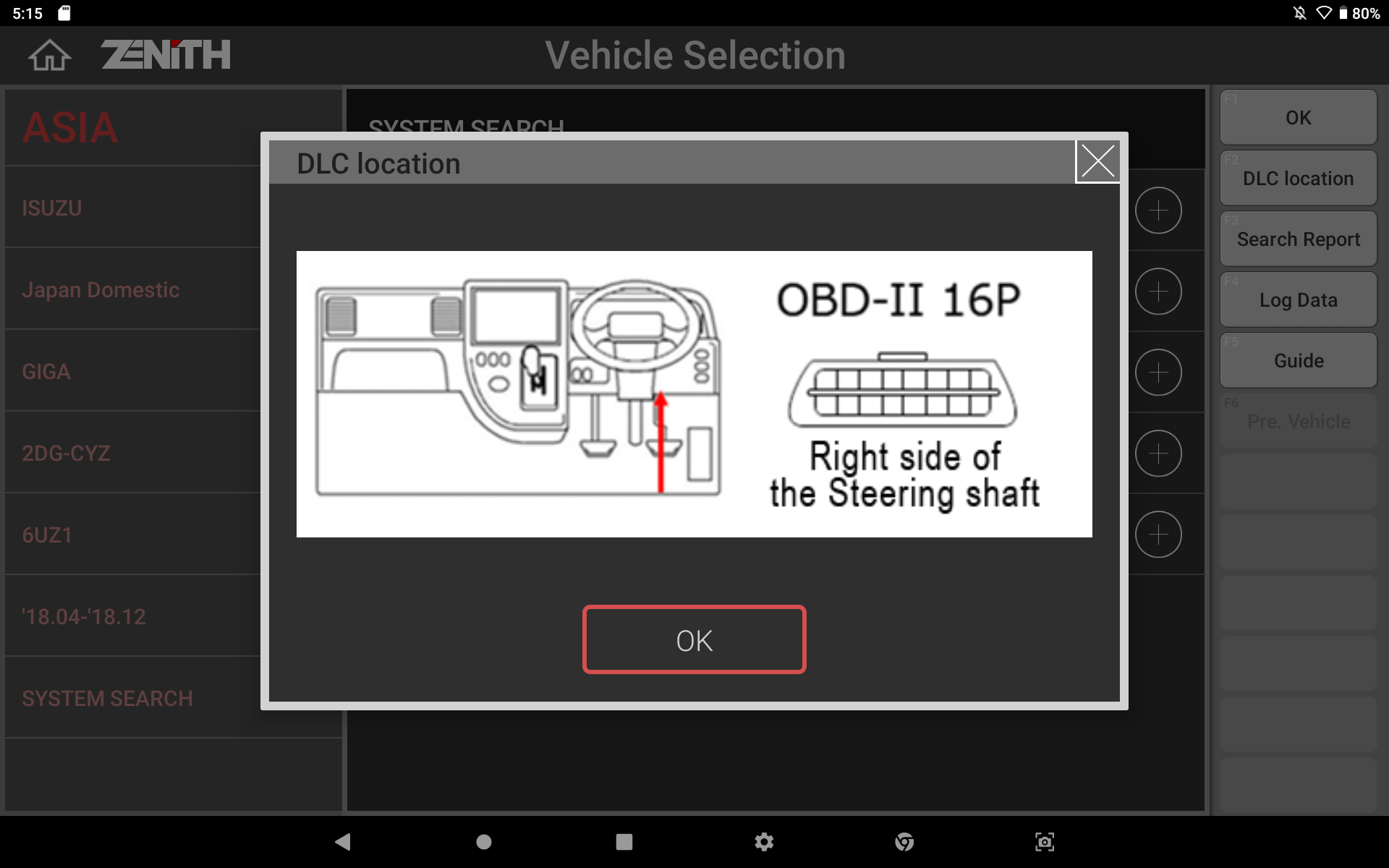

24V Trucks
Zenith supports bi-directional communications for Asian light duty to medium duty trucks with 24V system.

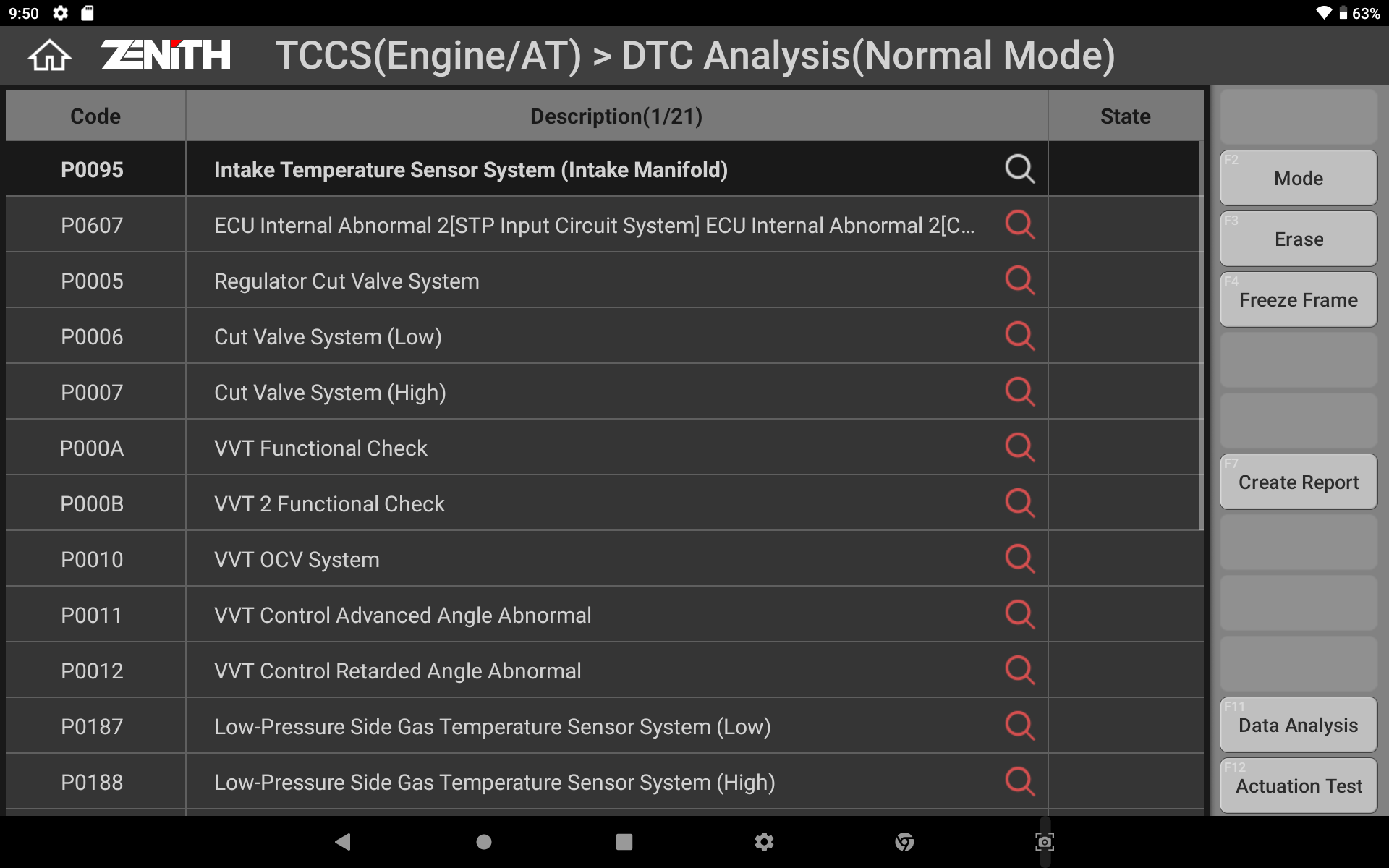

Full Text Description
No more acronyms and cutting of significant texts. Zenith offers the long-text DTC description in full screen, so you get all the information you need. Zenith also allows users to view bigger texts by zooming in and out of DTC description with two fingers.

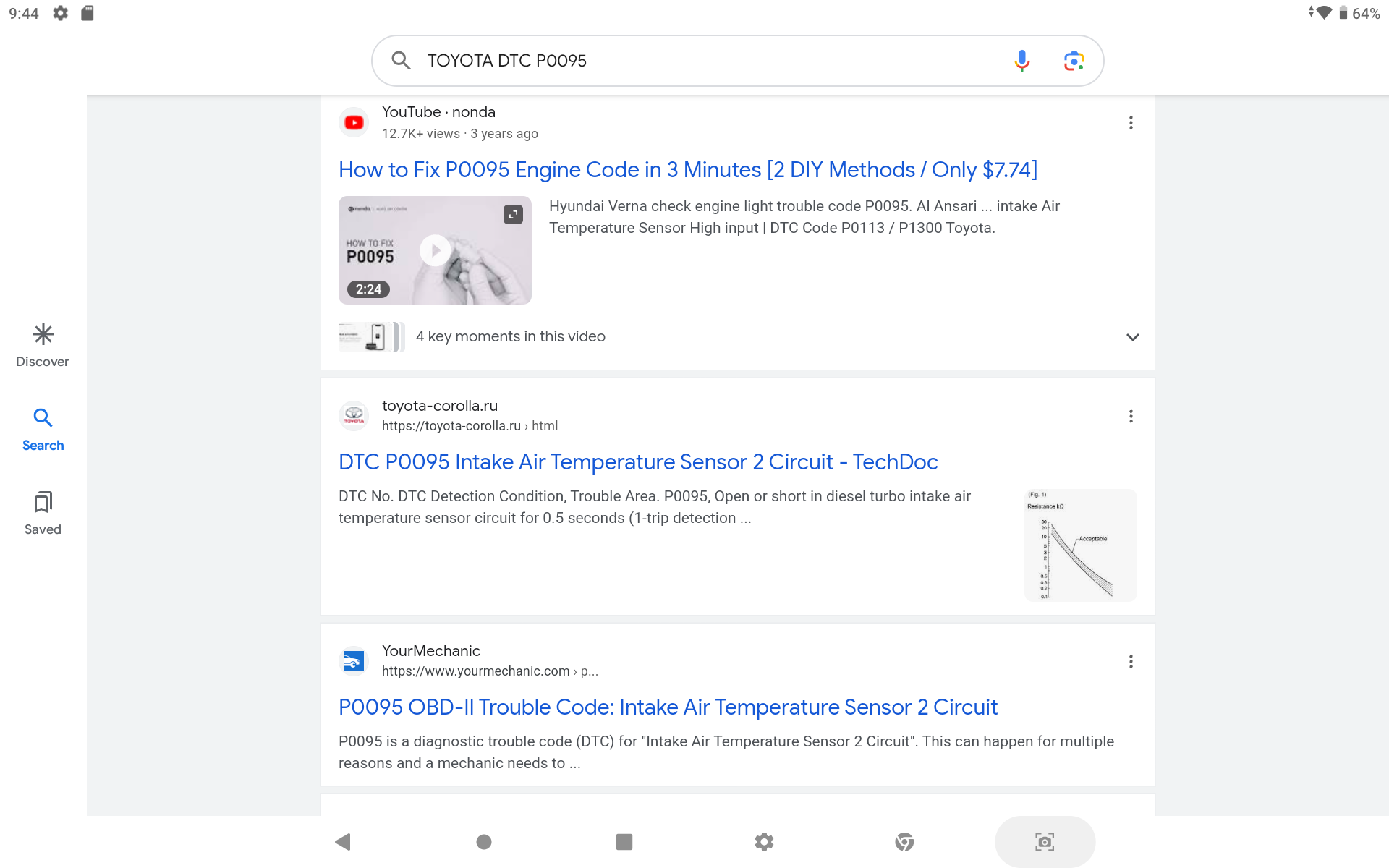

Search DTC
No need to going back and forth to search the DTC on the web. Simply hit the magnifying button next to the description!
Live Data
We understand that sensor data is important for professionals. Zenith offers intuitively designed and extremely fast Data Analysis where user can view/compare multiple live data with freedom of choice. Not only displaying multiple data in one screen, but Zenith also allows users to search and select desired items.

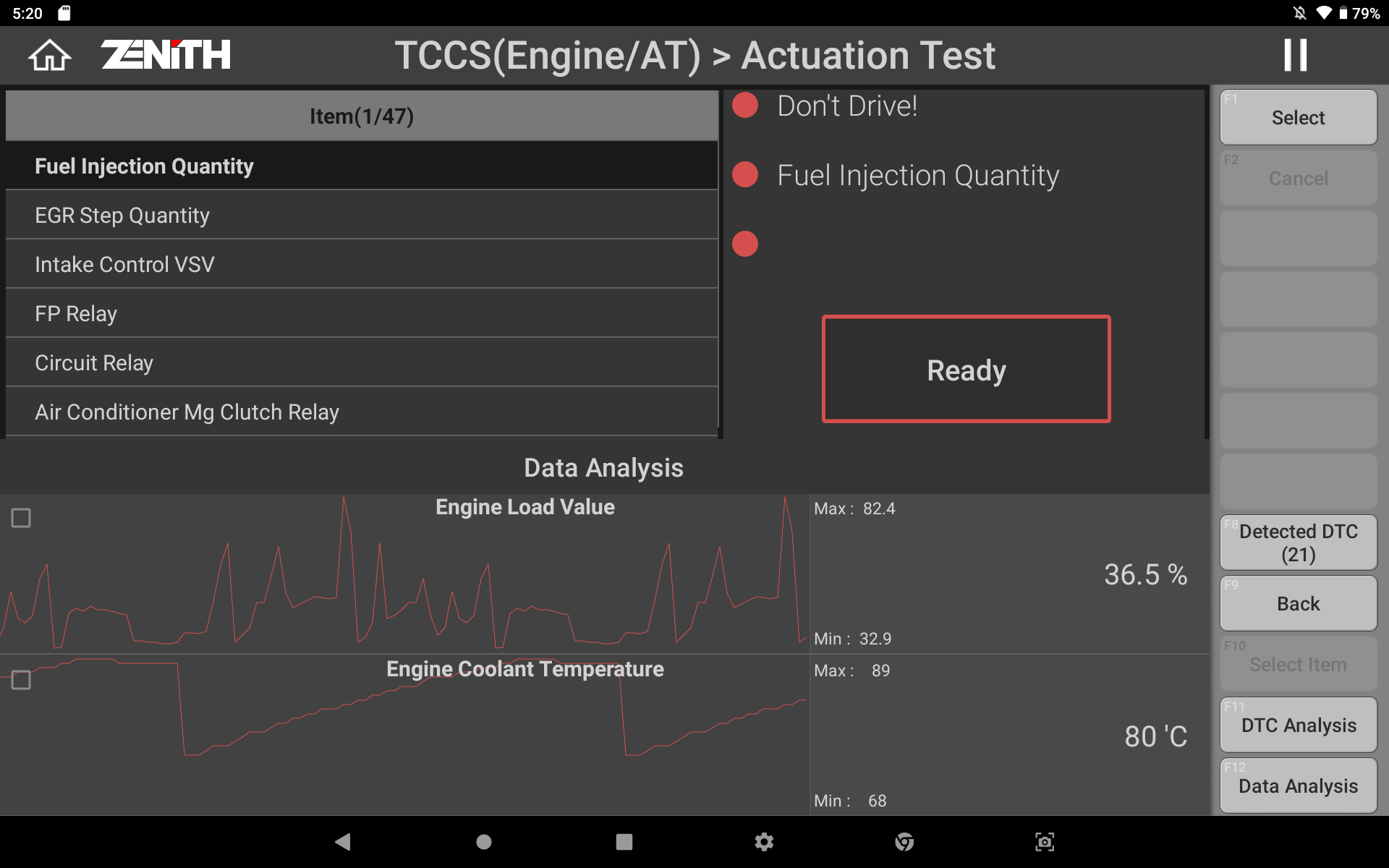

Actuation Test
Zenith offers not just simple actuation test function. We go next step to combine live data and graphing in actuation test, so that user can check the performance of the testing component live!

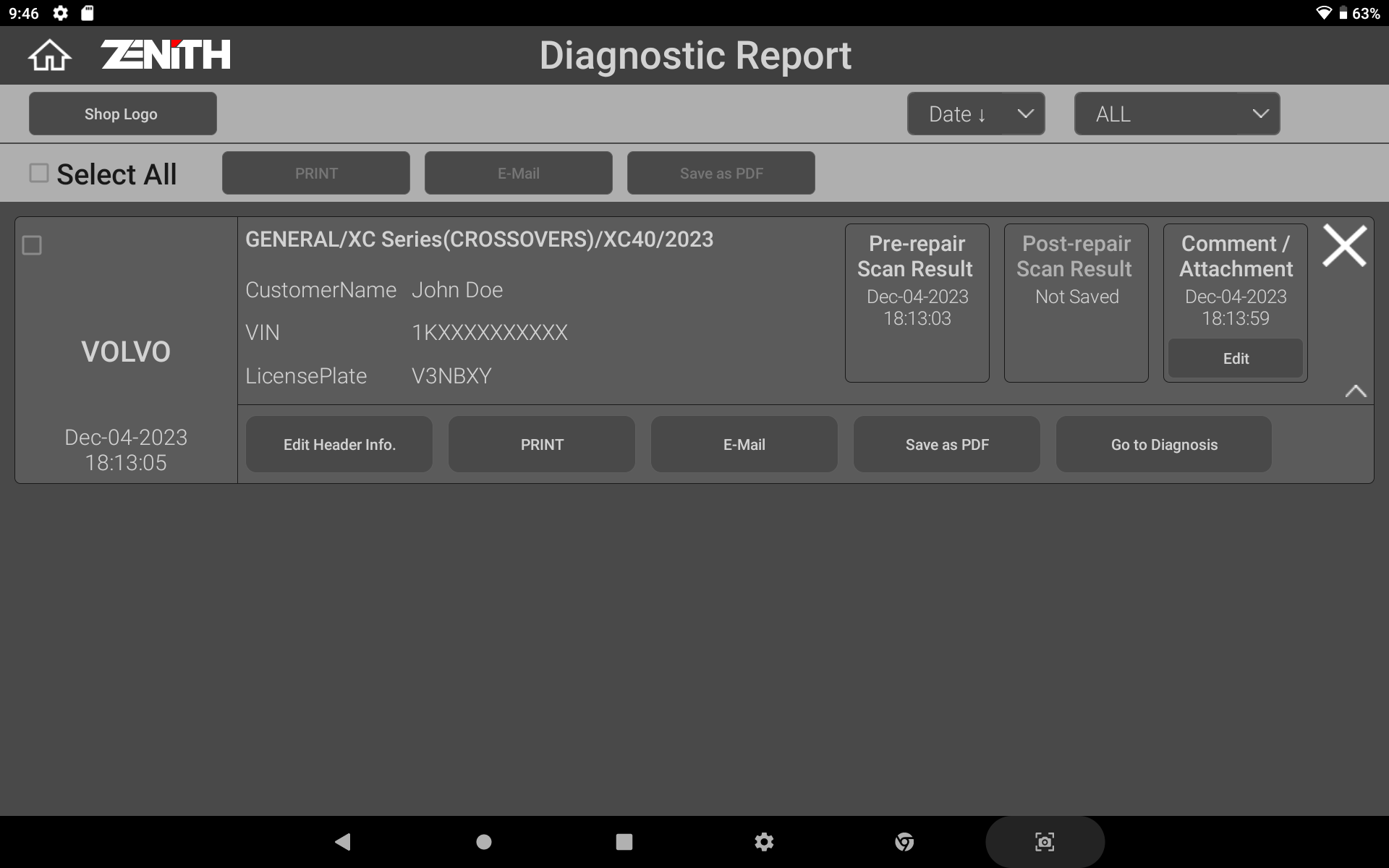

Pre & Post Diagnostic Report
Zenith offers easy creation of diagnostic report with Pre-scan and Post-scan result. Not only user can save the reports as PDF file, also with the help of its robust network connectivity, user can print the report directly with a blue-tooth printer or send them to desired E-mail address.

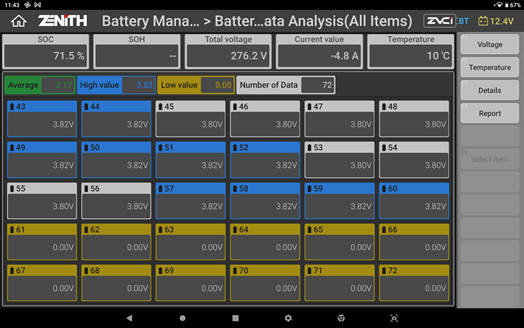

Battery Management System
EV, HEV vehicle’s Battery information such as SOC, SOH, Voltage, Current Value, Temperature of each cell is available to check in Battery Management System of ZENITH Z7
